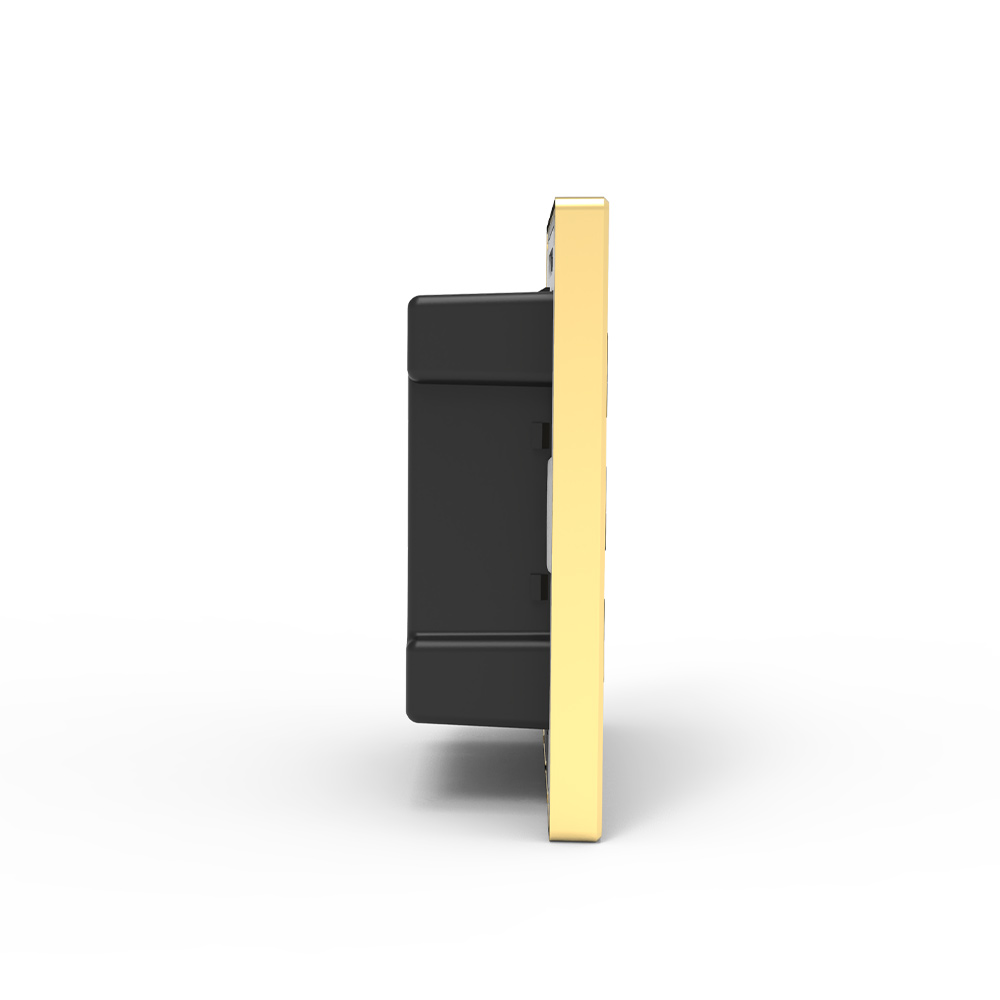

RS485 Smart Switch Panel
|
Parameters |
Value |
|
Working Current |
25mA |
|
Working Voltage |
12V DC±10% |
|
Communication Interface |
485 bus interface 4-bit 5.08 plug-in terminal |
|
Isolation Protection |
2500VDC Electrical Isolation |
|
Installation method |
Standard 86 Bottom Box installation |
|
Button Qty |
1-6 gang, light touch |
|
Dimension |
86mm*130mm*42mm |
|
Function |
ON/OFF switch, mode set, dimming, curtain control etc. |
|
Button Letters |
Customized |
RS485 Smart Switch Panel
| I. Product Description-RS485 Switch Panel Smart switch panel is a bus-type communication intelligent panel, which can realize dimming, switching, scene control, and control of load equipment, such as lights, curtains, air conditioning, audio and video. The number of buttons on the panel can be selected according to needs, and the touch button structure realizes the function of one-key multi-control. The button font can be customized text and pattern. Each button has LED backlight display. |
| Ⅱ. Technical Parameters |
| Parameters | Value |
| Working Current | 25mA |
| Working Voltage | 12V DC±10% |
| Working Temperature | 0℃~46℃ |
| Working Humidity | 10~95% |
| Communication Interface | 485 Bus-type |
| Isolation Protection | 2500VDC Electrical Isolation |
| Installation | Standard 86 Bottom Box |
| Button Qty | 1-6 gang, light touch |
| Dimension | 86mm*86mm*37mm |
| Function | ON/OFF switch, mode set, dimming, curtain control etc. |
| Button Letters | Customized |
| Brand | Omni/OEM/ODM |
Ⅲ. Product Features
|
| Ⅳ. Rs485 Modbus Light Control System |
V. RS485 Switch Panel Applications
|
|
Parameters |
Value |
|
Working Current |
25mA |
|
Working Voltage |
12V DC±10% |
|
Working Temperature |
0℃~15℃ |
|
Working Humidity |
10~95% |
|
Communication Interface |
485 Bus-type |
|
Isolation Protection |
2500VDC Electrical Isolation |
|
Installation |
Standard 86 Bottom Box |
|
Button Qty |
1-6 gang, light touch |
|
Dimension |
86mm*130mm*42mm |
|
Function |
ON/OFF switch, mode set, dimming, curtain control etc. |
|
Button Letters |
Customized |
|
Brand |
Omni/OEM/ODM |
