0-10V Modbus Remote Control Dimming Module

Working Voltage DC12V±10%；45mA
Analog Output 0~10VDC signal output（10mA)
Load Interface 4×2bit 7.62 terminals
Communication Interface RS485 bus  4bit 5.08 plug-in terminal
Size 108×88×66mm
Load capacity Single Channel 10A
Load type 0~10VDC dimmable electronic ballast
Relay Specification 16A Magnetic latching relay
Inquiry now

Ⅰ. Product Description

0-10V dimming is also called 0-10V signal dimming, which is an analog dimming method. It can achieve dimming by changing the voltage of 0-10V to controls the output current of the power supply. Dimming switch can "fade in and fade out". Built-in relay has features such as soft start and true shutdown technology . It has been widely in modbus light control system, to realize building automation, smart home control and smart hotel etc.

smart home control dimming module.png




Ⅱ. Product Features - 4CH 0-10V Dimming Module


● Dimming and on/off;

● Equipped with mechanic manual switch and touch switch;

● Each channel has a relay, which can completely shut off the strong current circuit


0-10V dimming module functions.png

Ⅲ. Application- 0-10V Dimming Module

  • Dimming Method: monochrome lamp, dual-color lights, tri-colors lights, RGBW light etc

  • Applications: street lighting, building lighting, engineering lighting, scenic lighting, local lighting, home lighting

485 light control 0-10V dimmer.png

Intelligent Light Control System Applications.png

Ⅳ. Available Dimmer Lamps

Downlight, Spotlight, Industrial lights, ball lamp, led strip, grid light, panel light


Dimmer Lights available.png

V. Scene and Time Control for RCU Dimming Module

rcu time dimming setting.png

rs485 communication dimming module.png

VI. APP and Backend System for Light Control

APP Remote Control Dimmer.png

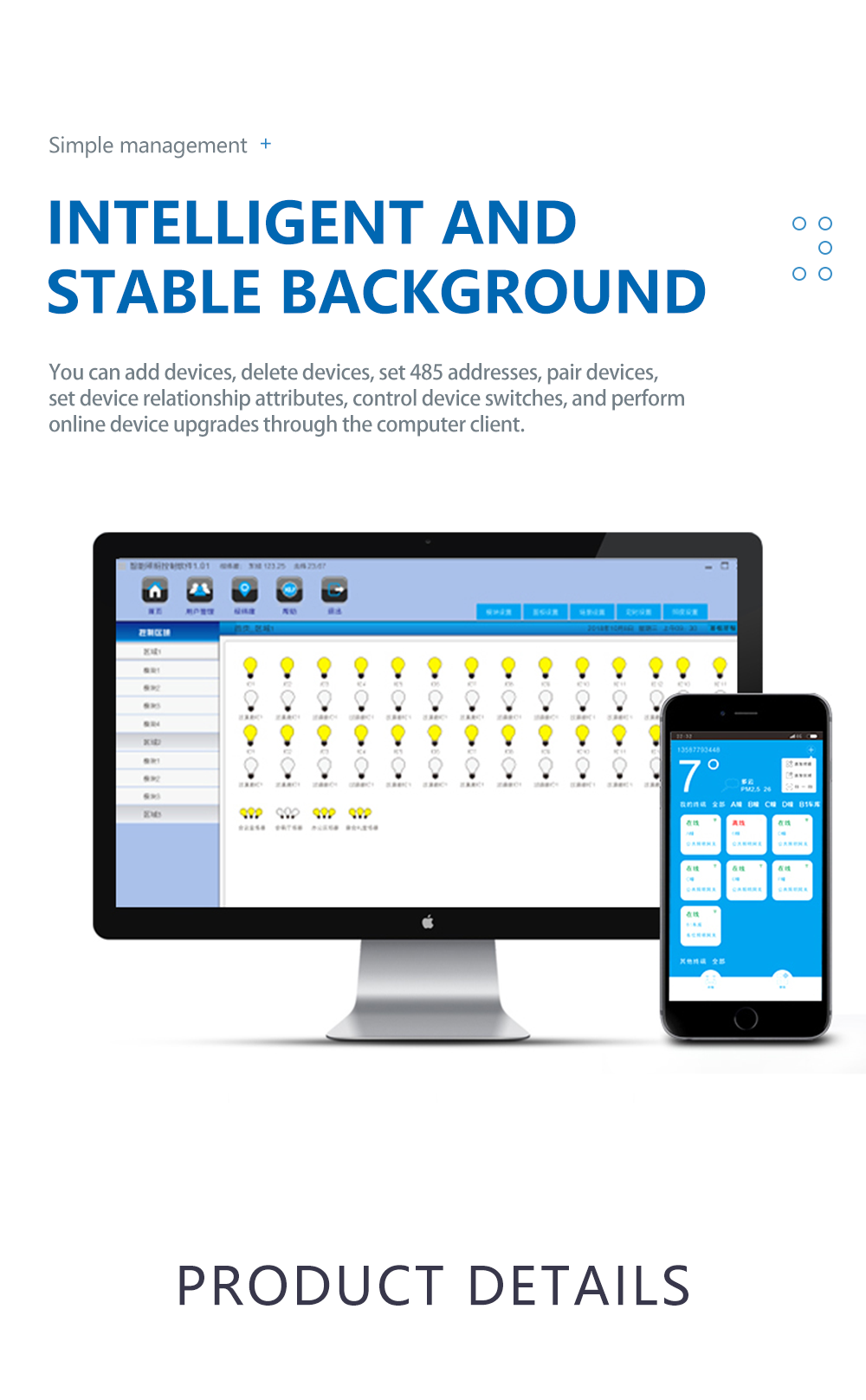

Dimming Module data monitor.png






  Ⅲ. RCU Dimming Modules Structure

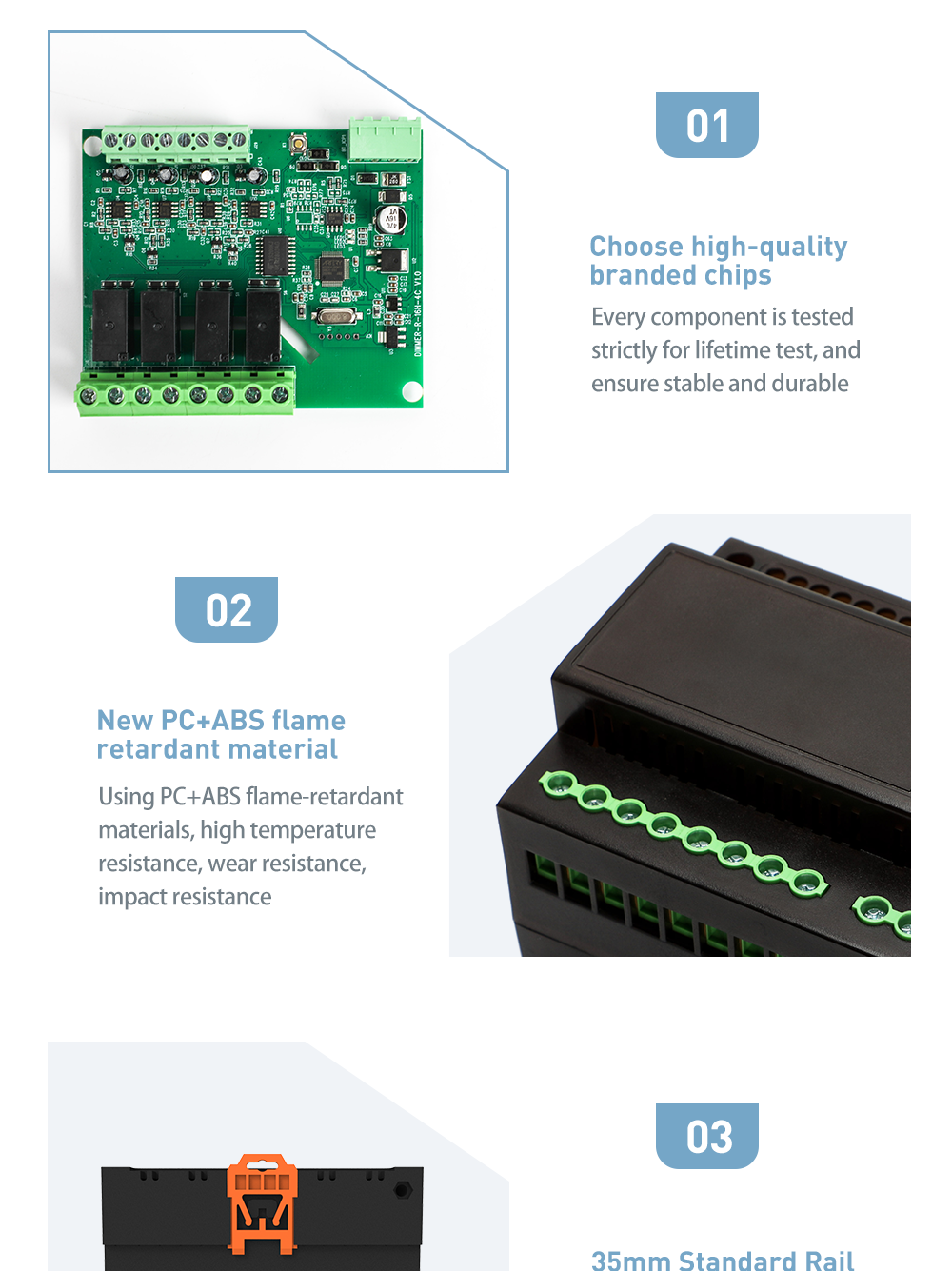

Brand new ABS housing 0-10V dimmer.png
